Specifications
- Manufacturer: Wacker Neuson

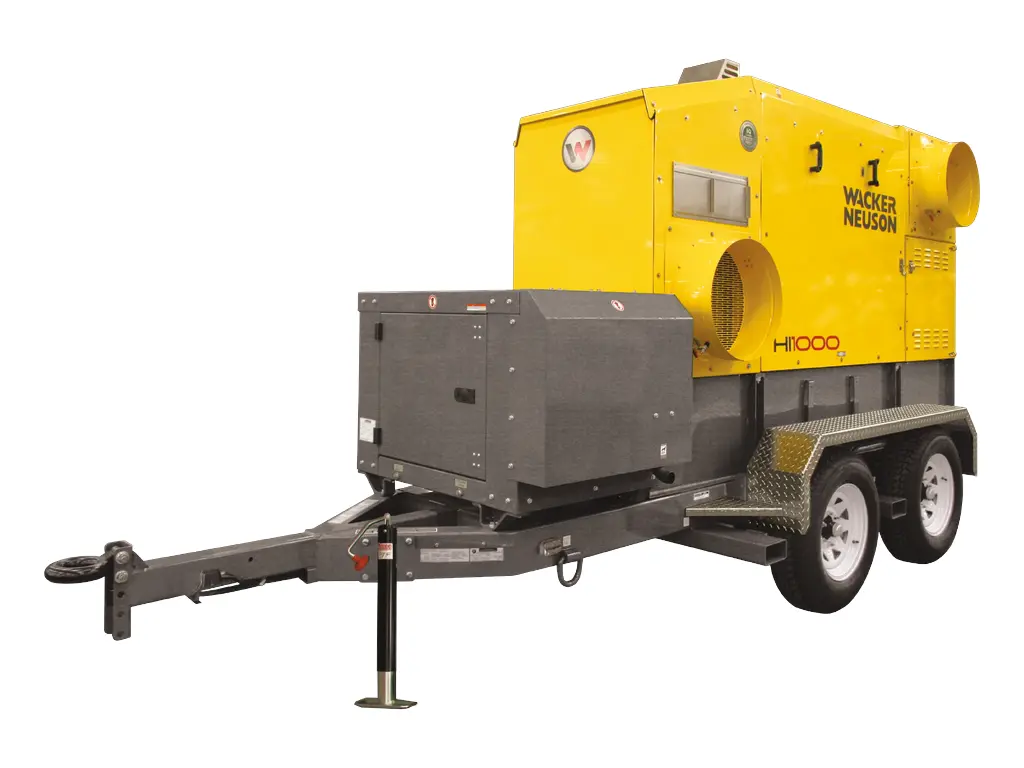

- Model: Indirect fired air heaters HI1000
- Type: Heaters
- Fuel Consumption Natural Gas:
- Nominal Current: 30 A
- Nominal Voltage: 230 V
- Nominal Frequency: 60 Hz
- Air Flow Rate: 7,569.2 Cfm
- Temperature Difference: 134.6 - 32 °f
- Heater, Net Output (diesel): 202 Kw
- Power Output, Burner Blower: 0.3 W
- Blower Type: Centrifugal Blower
- Power Output, Blower: 3.7 Kw
- Static Pressure (blower): 498 Pa
- Air Outlet Adapter: 2 X 508.0 Mm
- Air Inlet Size: 2 X 508.0 Mm
- Gross Heat Input (higher Heating Value) (diesel): 261 Kw
- Efficiency (diesel): 83 %
- Length: 197.2 "
- Gross Axle Weight Rating: 3,000.5 Lb
- Width: 61 "
- Height: 100.7 "
- Operating Weight: 5,150 Lb
- Dry Weight: 4,124.9 Lb
- Gross Vehicular Weight: 6,001 Lb
- Lift Bail - Quantity: 0,0
- Duct Length Max., 3x12" Supply Adapter: 98.4 Foot
- Duct Length Max., 2x16" Supply Adapter: 98.4 Foot
- Duct Length Max., 1x20" Supply Adapter: 200.1 Foot
- Duct Length Max., 1x20" Return Adapter: 49.2 Foot
- Output Current 1~: 141.7 A
- Output Voltage: 240 V
- Output Frequency: 60 Hz
- Nominal Engine Speed: 1,800 1/min
- Phase: 1 ~1 ~
- Generator Drive: Direct
- Genset: Yes
- Engine Type: Diesel Engine
- Cylinder: 3,0
- Cylinder Capacity: 0.1 Inch3
- Fuel Consumption: 0.6 Gph Us
- Oil Filling Max.: 1.3 Gal Us
- Power Rating Max.: 11.7 Hp
- Exhaust-gas Limit: Iiib/tier Iv Final
- Manufacturer: Kubota
- Circuit Breaker Amperage Ac: 15 A
- Temperature Monitor: Digital
- Cooling Fluid Volume: 3.3 Qt Us
- Run Time (75 % Prime Load): 27.5 Hrs
- Fuel Tank Capacity: 190 Gal Us
- Utilizable Tank Capacity: 172 Gal Us
- Fuel Consumption No Genset: 6.2 Gph Us
- Fuel Consumption With Genset: 6.4 Gph Us
- Run Time (100 %): 37.5 Hrs
- Brake: Surge Brake
- Axle: Tandem Axle
- Hitch Type: Pintle
- Tongue Weight, Min.: 418.9 Lb
- Tongue Weight, Max.: 718.7 Lb
- Tires: St225/75d
- Length For Shipping: 198.7 "
- Width For Shipping: 61 "
- Height For Shipping: 101.7 "
