Starting from:
$60,170
Specifications
- Manufacturer: Wallenstein

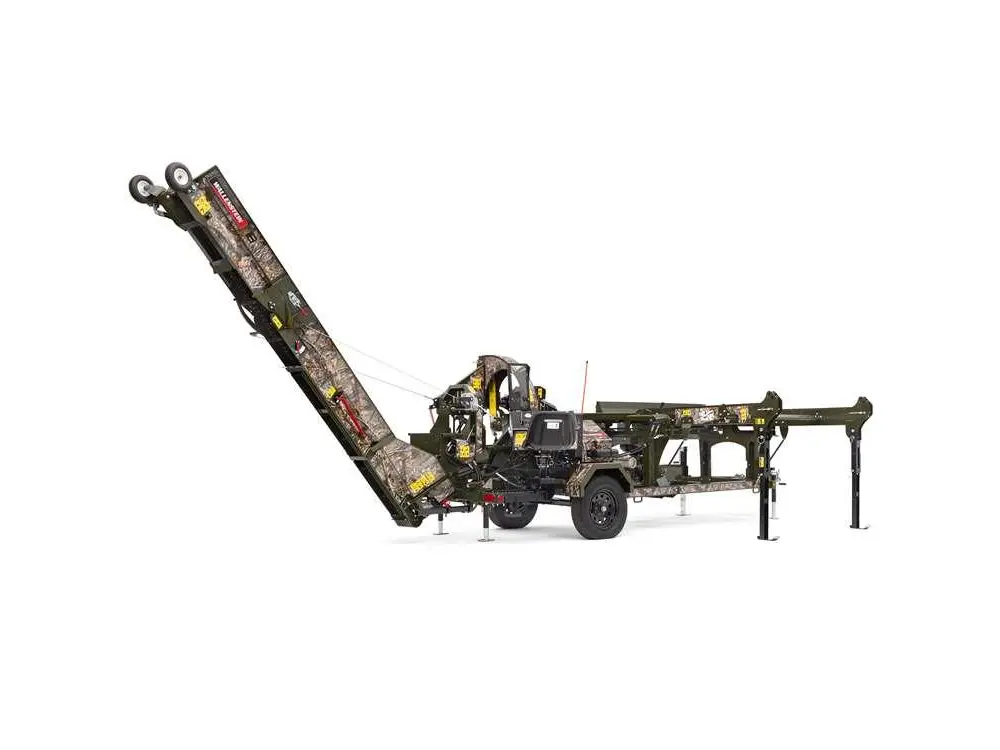

- Model: Firewood Processors & Conveyors WP1624-12
- Type: Conveyors
- Split Force:: 20 Ton
- On-Board Intelligence:: P3 Pulse™
- Engine:: Vanguard® 29 hp (896 cc)
- Split Opening:: 26" (66 cm)
- Average Cut To Cut Cycle Time:: 12 Seconds
- Full Stroke Splitting Cycle Time:: 6.5 Seconds
- Cylinder Diameter:: 4" (10 cm)
- Recommended Log Diameter:: 16" (31 cm)
- Maximum Log Diameter:: 18" (46 cm)
- Maximum Log Length:: 192" (488 cm)
- Log Trough Length:: 150" (381 cm)
- Log Deck Type:: Folding Two-Stage Live Deck
- Log Deck Length:: 70" (178 cm)
- Log Deck Width:: 72" (183 cm)
- Log Deck Height:: 53" (135 cm)
- Saw Bar:: Oregon® 25" (64 cm) Harvester Bar
- Saw Chain:: 18HX 0.404
- Saw Drive:: Hydraulic Gear Motor
- Bar Oiler:: Automatic
- Saw Bar Oil Reservoir Capacity:: 1.5 US gal (5.6 l)
- Hydraulic Pump - Stage 1:: 14 gpm (53 lpm)
- Hydraulic Pump - Stage 2:: 7.75 gpm (29.3 lpm)
- Hydraulic Pump - Stage 3:: 4.15 gpm (15.7 lpm)
- Splitter Chute Clearance:: 20" (51 cm)
- Throughput:: Up to 3.5 Cords Per Hour
- Tires:: ST205/75R15
- Hitch:: 2" Ladder Style Ball Coupler
- Tongue Weight:: 480 lbs (218 kg)
- Total Weight:: 3700 lbs (1450 kg)
- Dimensions Open (LxWxH):: 232" x 114" x 76" (589 cm x 289 cm x 193 cm)
- Dimensions Folded (LxWxH):: 232" x 66" x 105" (589 cm x 167 cm x 266 cm)
- Hydraulic Capacity:: 26 US gal (102 l)
- Fuel Tank Capacity:: 10 US gal (38 l)
- Included Conveyor:: 12' Integrated Conveyor
