Specifications

  • Manufacturer: Bobcat

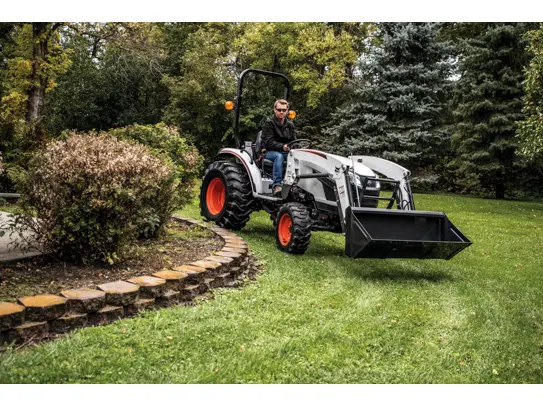

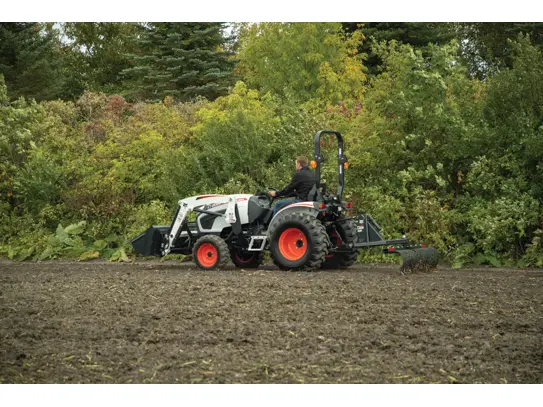

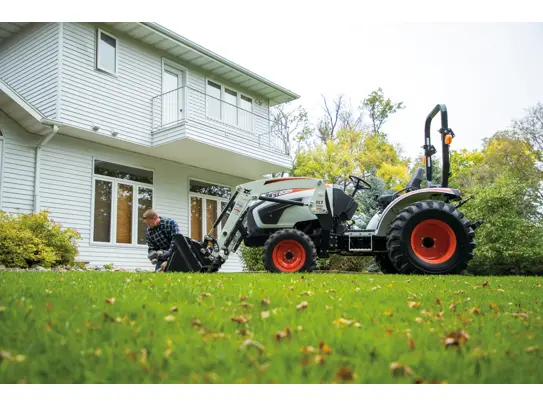

  • Model: Bobcat CT2025 HST
  • Type: Tractors
  • Horsepower: 24.5 hp
  • Lift Capacity At 24" Behind Lift Point: 1,631 lb
  • Pto Hp: 21.8 hp
  • Transmission Type: Infinite, 3 Range Hydrostatic
  • Width: 64 in
  • Turning Radius: 8' 0"
  • Wheelbase: 5' 5"
  • Emissions Tier (epa): Tier 4
  • Horsepower: 24.5 hp
  • Displacement: 100 in³
  • Number Of Cylinders: 3
  • Gross Hp: 24.5 hp
  • Engine Model: 3a165lwm(h)
  • Operating Weight: 2,634 lb
  • Travel Speed: 9.5 mph
  • Travel Speed - Reverse: 8.5 mph
  • 3-point Hitch: Category 1
  • 3-pt Lift Control Type: Hydraulic Position Control System
  • Lift Capacity At 24" Behind Lift Point: 1,631 lb
  • Rear Pto System: Live
  • Rear Pto - Rpm: 540
  • Pto Hp: 21.8 hp
  • Mid Pto - Rpm: 1976
  • Fuel Tank: 9 Gal
  • Implement Hydraulic Flow: 6.9 gal/min
  • Total Hydraulic Flow: 11.4 gal/min
  • Steering Hydraulic Flow: 4.5 gal/min
  • Brake Type: Wet Multi-disc
  • Transmission Type: Infinite, 3 Rangehydrostatic
  • Length: 120.9 in
  • Width: 64 in
  • Height: 91.5 in
  • Ground Clearance: 11.5 in
  • Turning Radius: 8' 0"
  • Wheelbase: 5' 5"
  • Front Tire Size: Front Industrial (ag, Turf) 25x8.5-14 (7-16, 27x8.5-15)
  • Rear Tire Size: Rear Industrial (ag, Turf) 15-19.5 (11.2-24, 41x14-20)
  • Loader Lift Height: 7' 10"
  • Lift Capacity @ 500mm Ahead Of Bkt Pivot: 1,369 lb
  • Bucket Width: 5' 0"
