Starting from:
$9,120
Specifications
- Manufacturer: Wallenstein

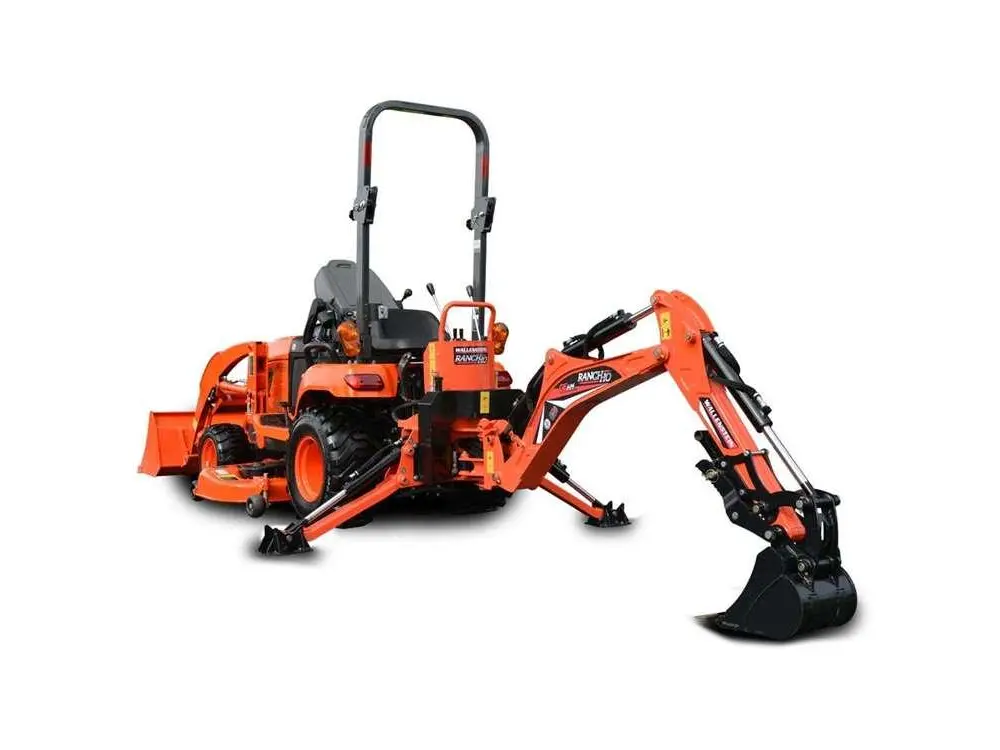

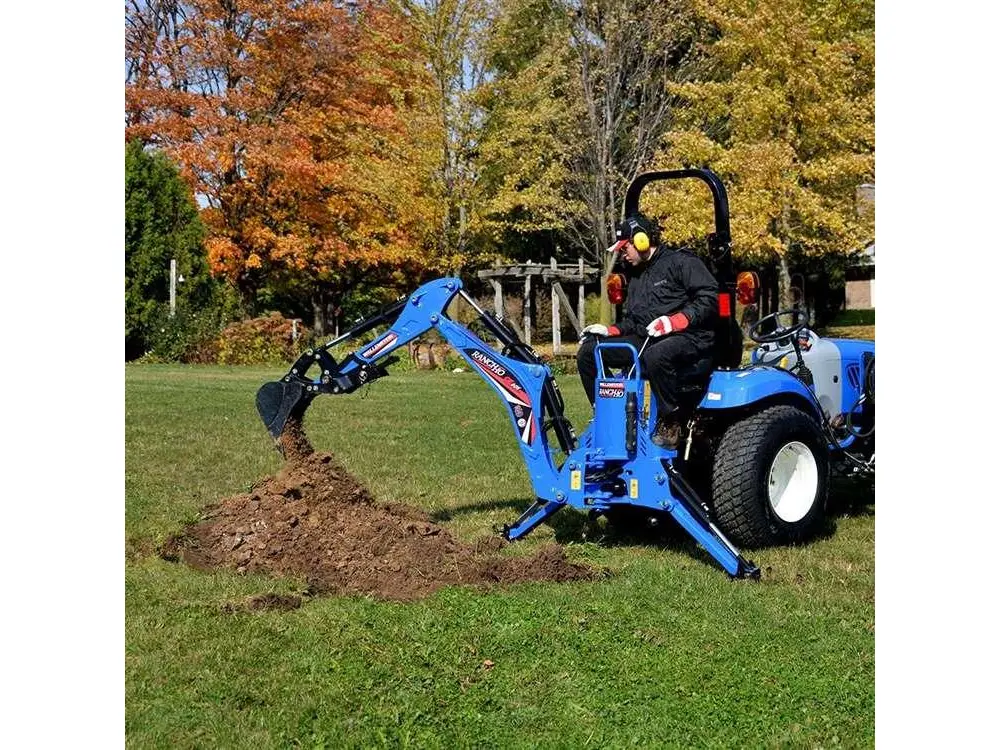

- Model: Backhoes & Skid Diggers GE605
- Type: Diggers
- Digging Depth:: 6' 4" (193 cm)
- Engine HP Range (Tractor):: 15 - 35
- Required Hydraulic Flow:: 4 - 12 gpm (15 - 45 lpm)
- Stabilizer Width (Spread) :: 72" (183 cm)
- Main Boom Cylinder Diameter :: 2.5" (64 mm)
- Dipper Cylinder Diameter :: 2.25" (57 mm)
- Bucket Cylinder Diameter:: 2" (51 mm)
- Number Of Swing Cylinders:: 1
- Swing Cylinder Diameter:: 2.5" (64 mm)
- Stabilizer Cylinder Diameter:: 2" (51 mm)
- Reach From Swing Post :: 100" (254 cm)
- Includes Flow Divider:: No
- Bucket Rotation:: 180°
- Swing Arc:: 150°
- SAE* Dipper Boom Digging Force:: 1250 lbs (567 kg)
- SAE* Bucket Digging Force:: 2054 lbs (932 kg)
- Boom Lift Capacity:: 250 lbs (113 kg)
- Ground Clearance:: 8.5" (22 cm)
- Loading Height:: 62" (158 cm)
- Overall Operating Height (Fully Raised):: 91" (231 cm)
- Total Weight:: 500 lbs (227 kg)
- Transport Dimensions (LxWxH):: 56" x 41" x 65" (142 cm x 104 cm x 165 cm)
- Operating Pressure:: 1800 psi (12411 kPa)
- Mounting System:: Subframe
