Starting from:
$10,330
Specifications

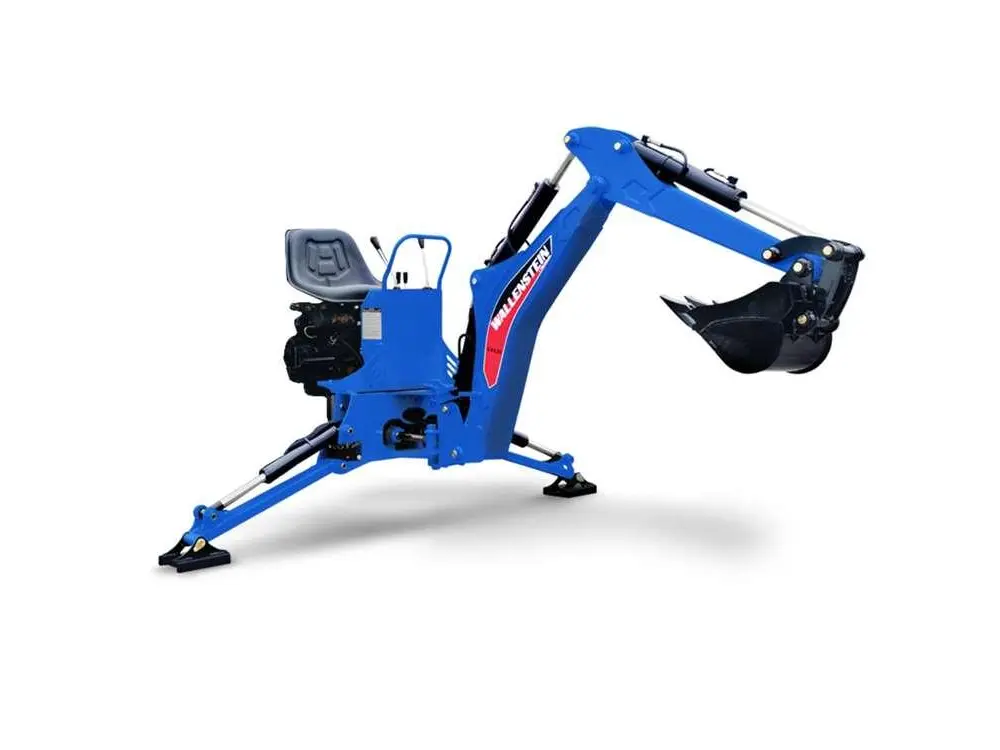

- Manufacturer: Wallenstein
- Model: Backhoes & Skid Diggers GX620
- Type: Diggers
- Digging Depth:: 6' 4" (193 cm)
- Engine HP Range (Tractor):: 20 - 40
- Engine HP Range (Skidsteer):: 20 - 50
- Required Hydraulic Flow:: 4 - 12 gpm (15 - 45 lpm)
- Stabilizer Width (Spread) :: 74" (188 cm)
- Main Boom Cylinder Diameter :: 2.5" (64 mm)
- Dipper Cylinder Diameter :: 2.25" (57 mm)
- Bucket Cylinder Diameter:: 2.25" (57 mm)
- Number Of Swing Cylinders:: 2
- Swing Cylinder Diameter:: 2" (51 mm)
- Stabilizer Cylinder Diameter:: 2" (51 mm)
- Reach From Swing Post :: 100" (254 cm)
- Includes Flow Divider:: No
- Bucket Rotation:: 180°
- Swing Arc:: 180°
- SAE* Dipper Boom Digging Force:: 1250 lbs (567 kg)
- SAE* Bucket Digging Force:: 2600 lbs (1179 kg)
- Boom Lift Capacity:: 385 lbs (175 kg)
- Ground Clearance:: 10.5" (27 cm)
- Loading Height:: 62" (158 cm)
- Overall Operating Height (Fully Raised):: 92" (234 cm)
- Total Weight:: 575 lbs (261 kg)
- Transport Dimensions (LxWxH):: 68" x 40" x 63" (173 cm x 102 cm x 160 cm)
- Operating Pressure:: 1800 psi (12411 kPa)
- Mounting System:: Subframe, Mini Skidsteer Universal Plate, PT302 (Cat I)
