Starting from:
$12,010
Specifications
- Manufacturer: Wallenstein

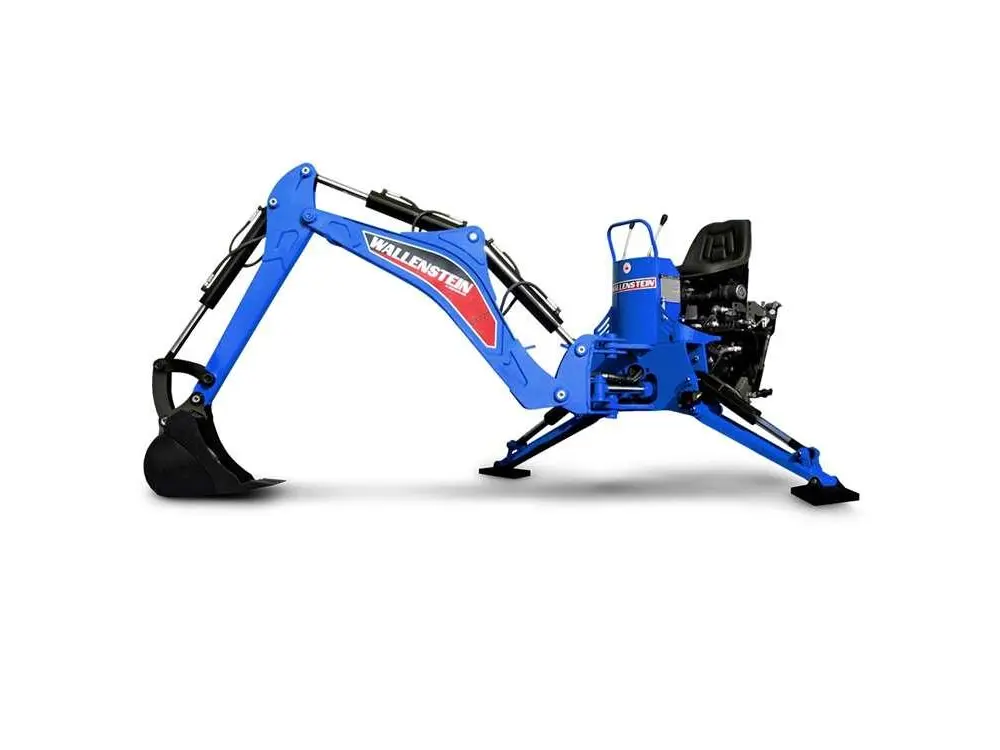

- Model: Backhoes & Skid Diggers GX720
- Type: Diggers
- Digging Depth:: 7' 8" (234 cm)
- Engine HP Range (Tractor):: 30 - 65
- Engine HP Range (Skidsteer):: 30 - 75
- Required Hydraulic Flow:: 5 - 27 gpm (19 - 102 lpm)
- Stabilizer Width (Spread) :: 89" (226 cm)
- Main Boom Cylinder Diameter :: 3" (76 mm)
- Dipper Cylinder Diameter :: 2.5" (64 mm)
- Bucket Cylinder Diameter:: 2.5" (64 mm)
- Number Of Swing Cylinders:: 2
- Swing Cylinder Diameter:: 2.5" (64 mm)
- Stabilizer Cylinder Diameter:: 2.5" (64 mm)
- Reach From Swing Post :: 123" (312 cm)
- Includes Flow Divider:: Yes
- Bucket Rotation:: 180°
- Swing Arc:: 180°
- SAE* Dipper Boom Digging Force:: 2300 lbs (1043 kg)
- SAE* Bucket Digging Force:: 3800 lbs (1724 kg)
- Boom Lift Capacity:: 925 lbs (420 kg)
- Ground Clearance:: 10.5" (27 cm)
- Loading Height:: 80" (203 cm)
- Overall Operating Height (Fully Raised):: 119" (302 cm)
- Total Weight:: 765 lbs (347 kg)
- Transport Dimensions (LxWxH):: 80" x 43" x 79" (203 cm x 109 cm x 201 cm)
- Operating Pressure:: 2250 psi (15513 kPa)
- Mounting System:: Subframe, Skidsteer Universal Plate, PT302 (Cat I), PT322 (Cat II)
